• Wheels, 18" (45.7 cm) forged polished aluminum includes painted center caps and a steel spare. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered (Not available with (9F6) 12,800 lbs. GVWR, (C7J) 13,000 lbs. GVWR or (9G4) 13,400 lbs. GVWR (dual rear wheel). Included with (WEA) Z71 Appearance Package.)
• Tires, LT265/70R18E all-season, blackwall (Not available with (9F6) 12,800 lbs. GVWR, (C7J) 13,000 lbs. GVWR or (9G4) 13,400 lbs. GVWR (dual rear wheel). Included with (PYV) 18" (45.7 cm) forged polished aluminum wheels.)
• Pickup box, Fleetside
• Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered)
• Spare tire lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (VF7) rear bumper delete is ordered.)
• Bumper, front chrome
• Bumper, rear chrome, step-style with pad (Not available with (ZW9) pickup box delete)
• Moldings, bodyside, body-colored (Not available with Regular Cab models. Moldings are deleted if any SEO paint is ordered.)
• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Mirrors, outside heated power-adjustable vertical camper manual-folding and extension, Black includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver-and front passenger-side glass) (With Regular Cab models, includes rear window. With Extended Cab models, includes rear and rear quarter windows. With Crew Cab models or (C49) rear-window defogger, includes light-tinted rear window.)
• Wipers, front intermittent wet-arm with pulse washers
• Door handles, Black

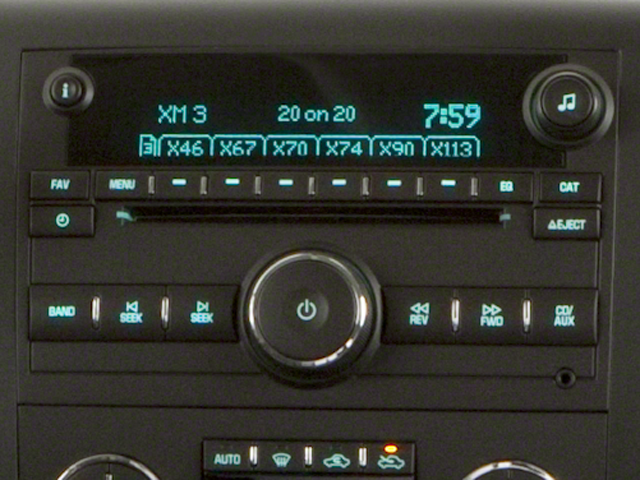

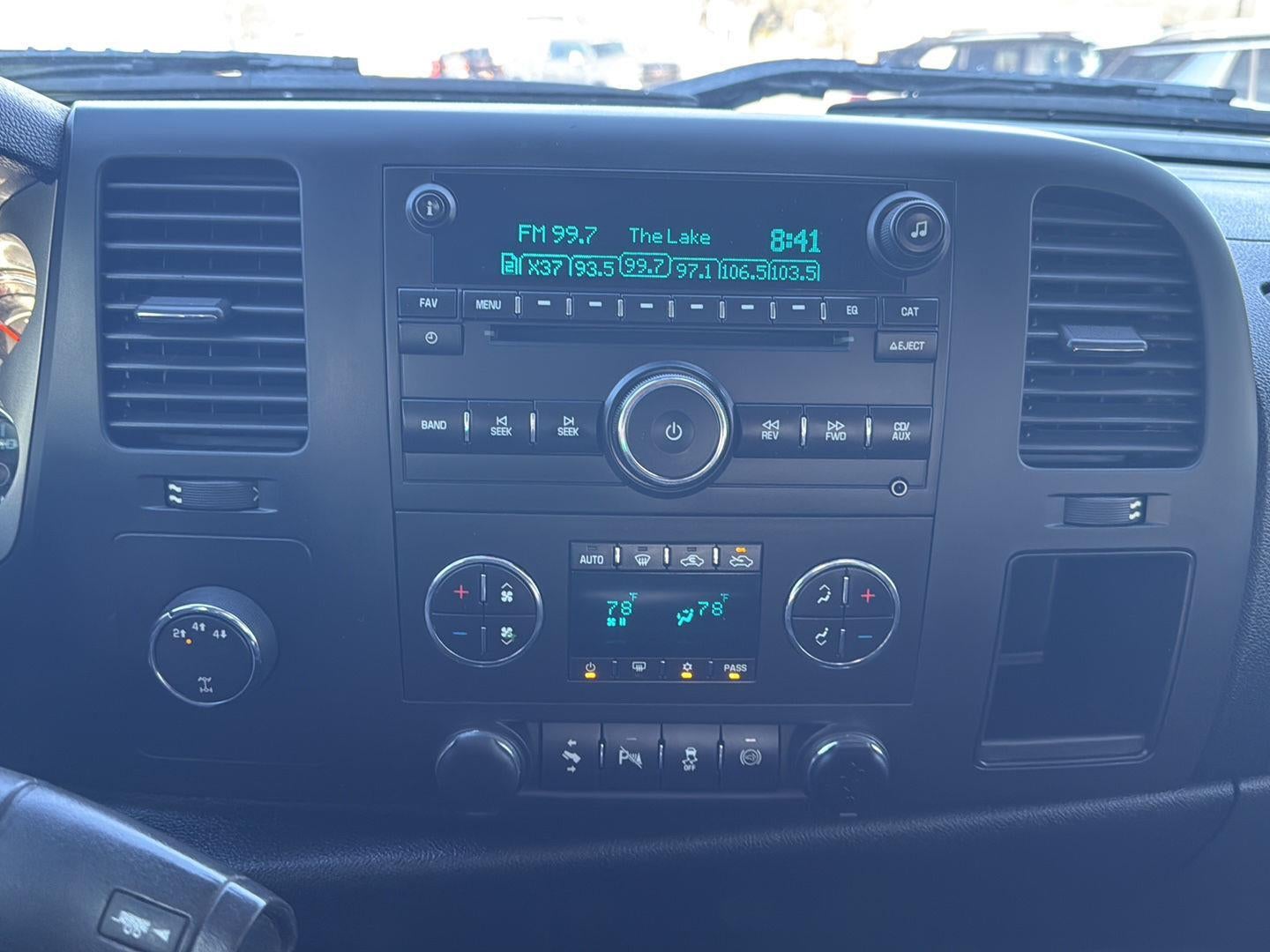

• Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock (Not available with (U42) rear seat DVD player entertainment system.)
• SiriusXM Satellite Radio is standard on nearly all 2012 GM models. Enjoy a 3-month trial to the 'XM Select' package, with over 170 channels including commercial-free music, all your favorite sports, exclusive talk and entertainment. And now add premium channels to your trial at no-cost. Welcome to the world of satellite radio. (Not available with (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation or (UE0) OnStar, delete. Requires a subscription sold separately by SiriusXM after the trial period. If you decide to continue your service at the end of your subscription, service will automatically renew and bill, at the rates in effect at the time of renewal, until you call SiriusXM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm.com. Available only to those at least 18 and older in the 48 contiguous USA and D.C.)
• Audio system feature, speaker system (Includes 4 speakers on Regular Cab and 6 speakers on Extended and Crew Cab Models.)

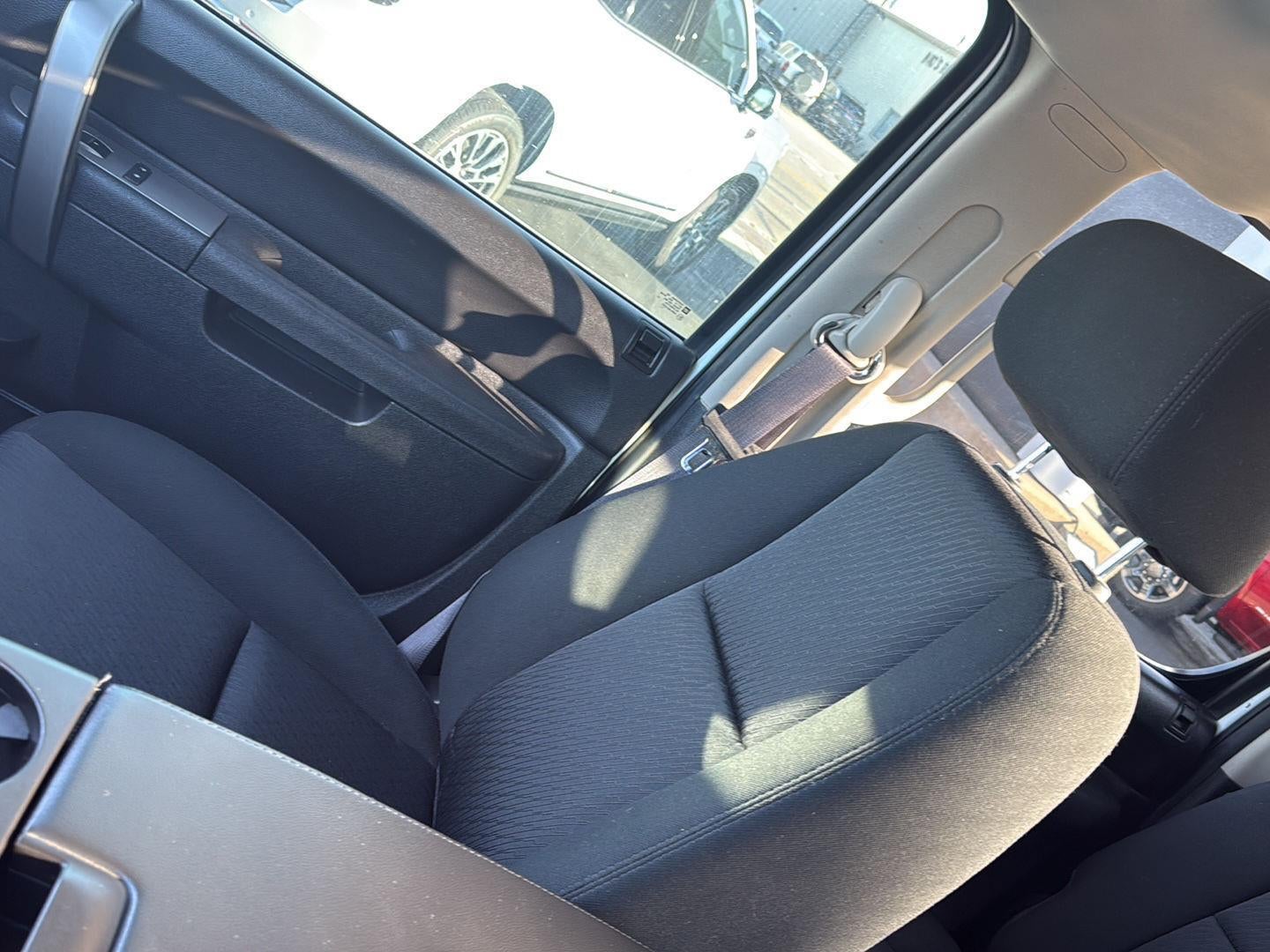

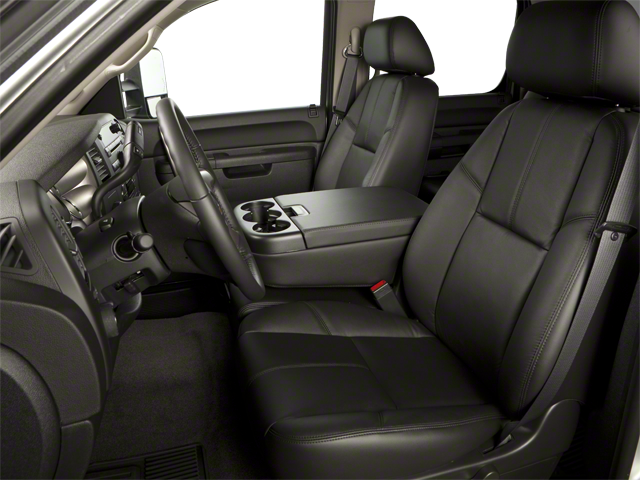

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining center fold-down armrest with storage, lockable storage compartment in seat cushion (includes auxiliary power outlet), adjustable outboard head restraints and storage pockets on Extended and Crew Cab models
• Seat trim, Premium Cloth
• Seat adjuster, manual lumbar control on the driver-side

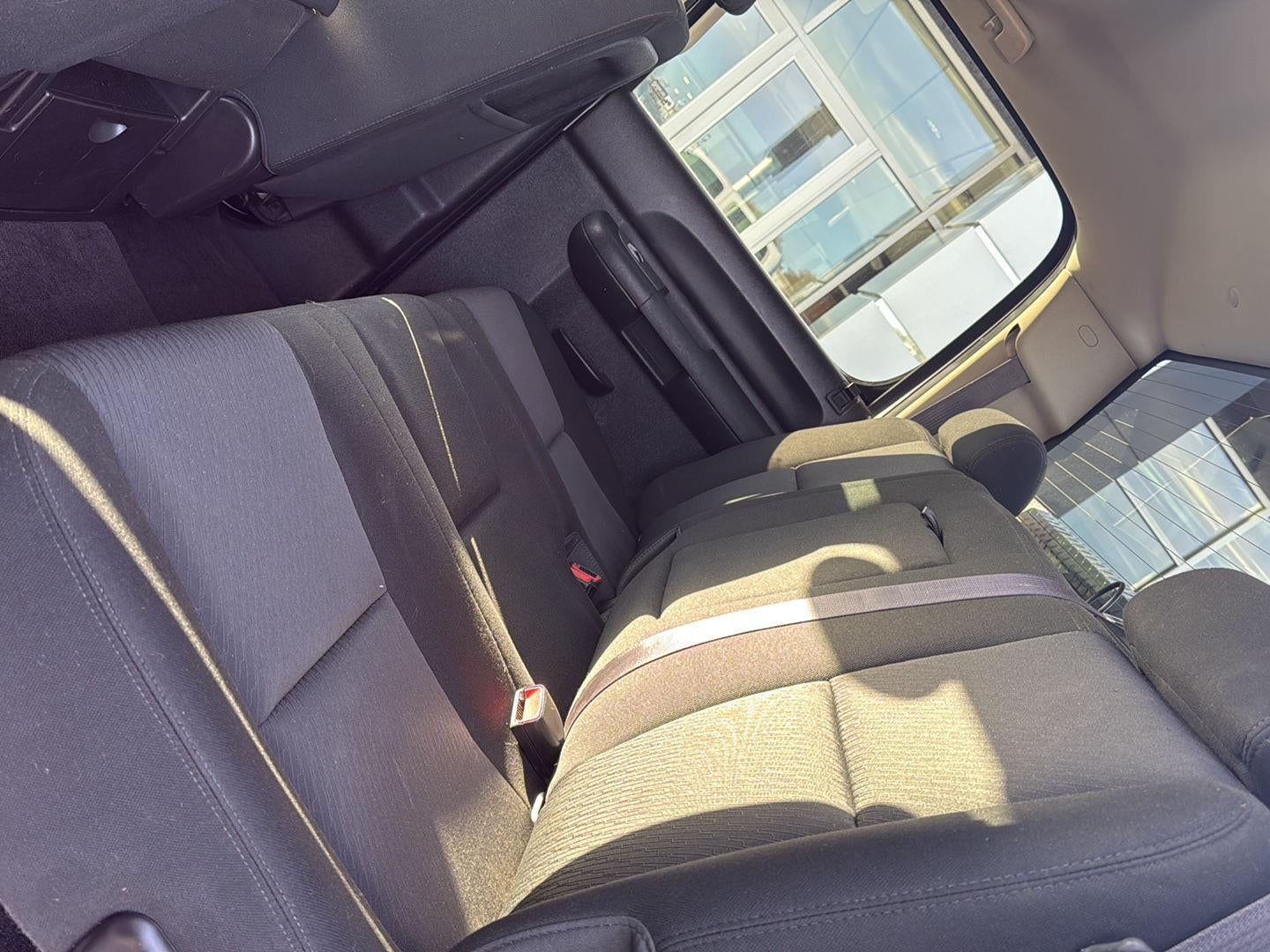

• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor) (Requires Extended or Crew Cab Models.)
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats) (May be substituted with (BG9) Black rubberized vinyl floor covering.)
• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on

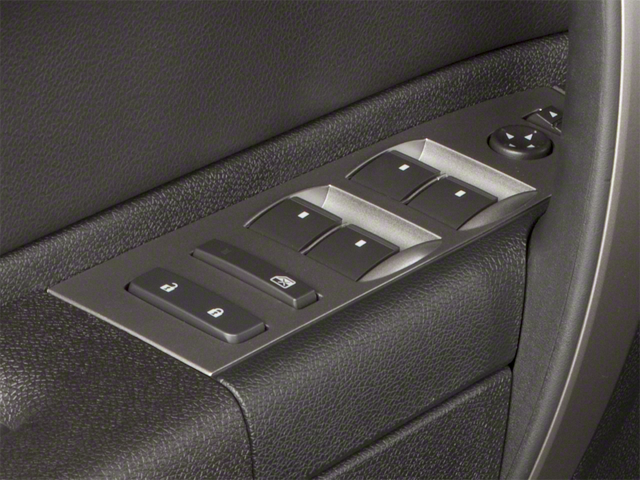

• Windows, power with driver Express-Down
• Door locks, power includes Remote Keyless Entry
• Remote vehicle starter prep package includes Remote Keyless Entry with 2 transmitters, panic button and content theft alarm (To enable remote start capability, new key fobs and vehicle reprogramming are required. Please see dealer for details. Remote Keyless Entry does not lock/unlock tailgate.)

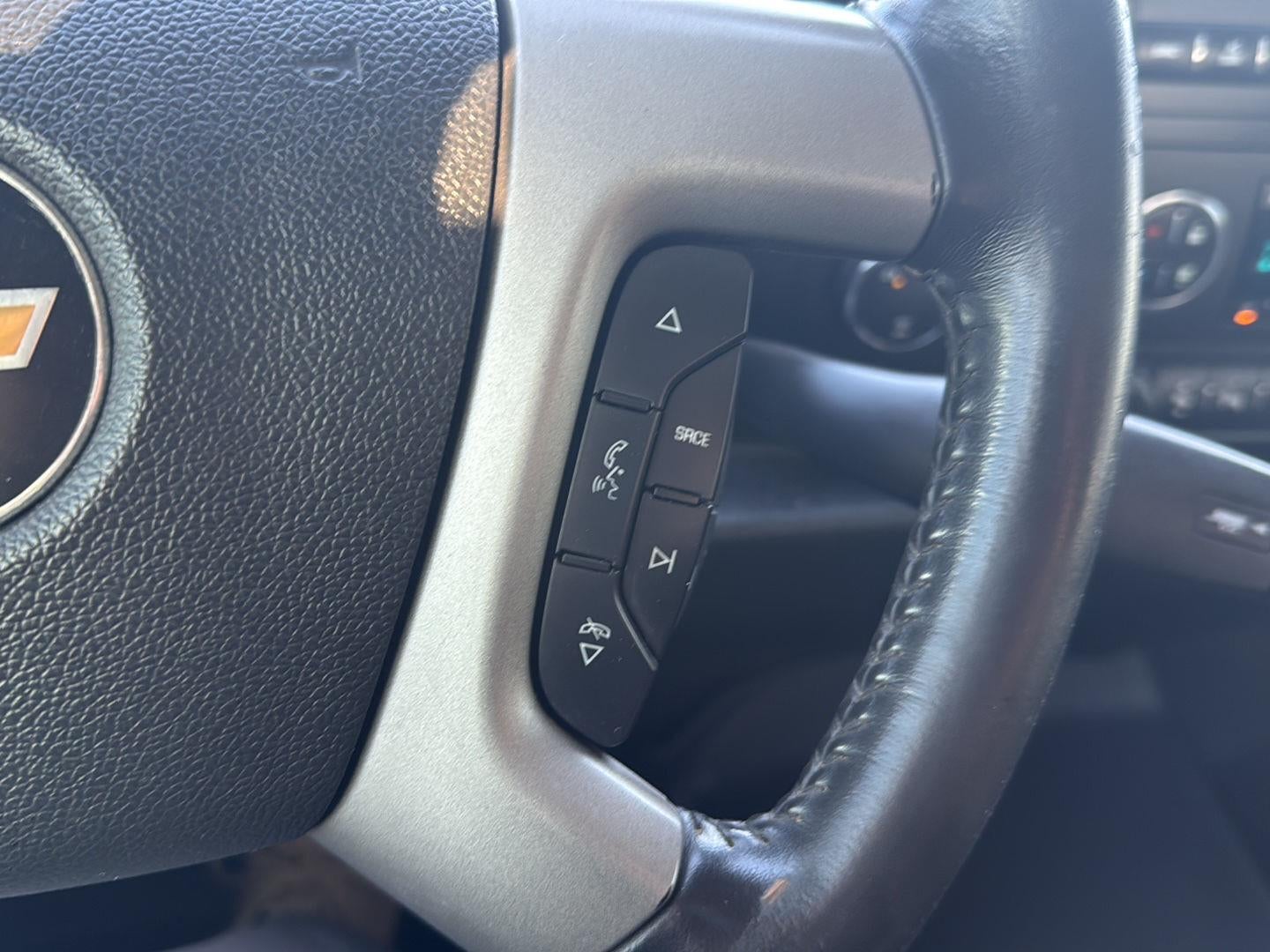

• Cruise control, electronic with set and resume speed, located on steering wheel
• Air conditioning, single-zone manual front climate control
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt

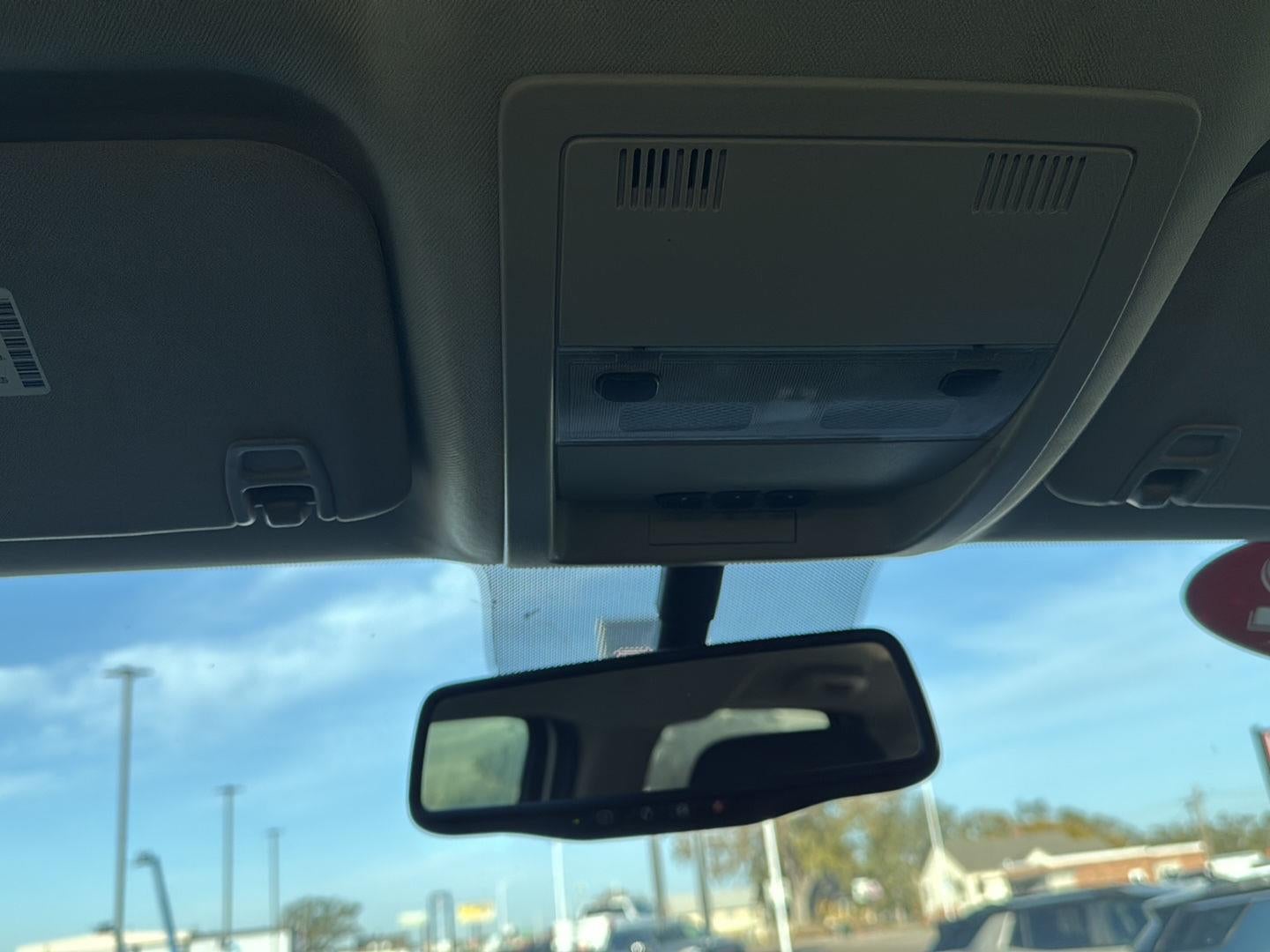

• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Coat hooks, rear driver and passenger side

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist (Standard on single rear wheel GVWR only.)
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
• OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
• Door locks, rear child security (Crew Cab models only.)

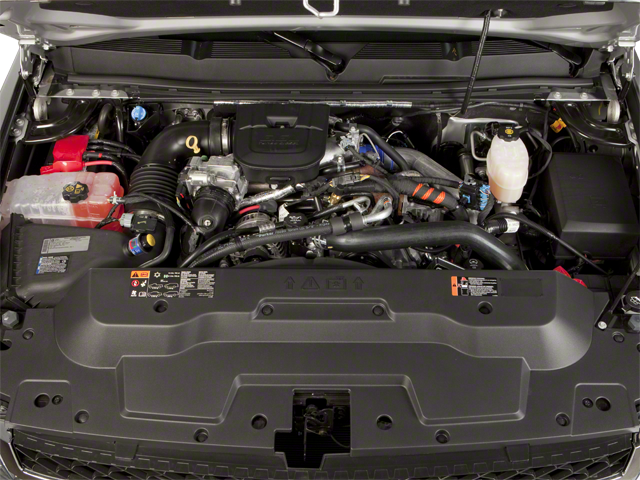

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm)

• Rear axle
• 3.73 ratio (Not available with (L96) Vortec 6.0L V8 SFI engine on CC30903 with Single Rear Wheels.)
• Suspension Package
• Handling/Trailering
• heavy-duty includes 35mm monotube shocks and 34mm front stabilizer bar
• GVWR
• 10
• 800 lbs. (4899 kg) with single rear wheels (Requires CK30743 with (L96) Vortec 6.0L V8 SFI engine.)
• Air cleaner
• high-capacity
• Transfer case
• electronic shift with rotary dial controls (Requires 4WD models)
• Differential
• heavy-duty automatic locking rear
• Four wheel drive
• Trailering equipment
• heavy-duty includes trailering hitch platform and 2.5- inch receiver with 2" adapter
• 7-wire harness (harness includes wires for: park lamps
• backup lamps
• right turn
• left turn
• electric brake lead
• battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector
• wiring harness for after-market trailer brake controller (located in the instrument panel harness) and (JL1) integrated trailer brake controller. (Will be deleted if (ZW9) pickup box delete or (VF7) rear bumper delete is ordered.)
• Cooling
• external engine oil cooler heavy-duty air-to-oil
• integral to driver side of radiator tank
• Cooling
• auxiliary external transmission oil cooler heavy-duty air-to-oil
• Battery
• heavy-duty 600 cold-cranking amps
• maintenance-free with rundown protection and retained accessory power
• Alternator
• 125 amps
• Frame
• fully boxed
• hydroformed front section
• Trailer brake controller
• integrated (With (E63) fleetside pickup box
• included and only available with (Z82) heavy-duty trailering equipment. Available as a free flow option with (ZW9) pickup box delete.)
• Recovery hooks
• front
• frame-mounted
• Suspension
• front independent
• torsion bar
• Suspension
• rear 4+1+2 multi-leaf springs for single rear wheel and 3+1+2 multi-leaf springs for dual rear wheel
• Steering
• power
• recirculating ball
• Brakes
• 4-wheel antilock
• 4-wheel disc with single rear wheels
• Exhaust
• aluminized stainless-steel muffler and tailpipe

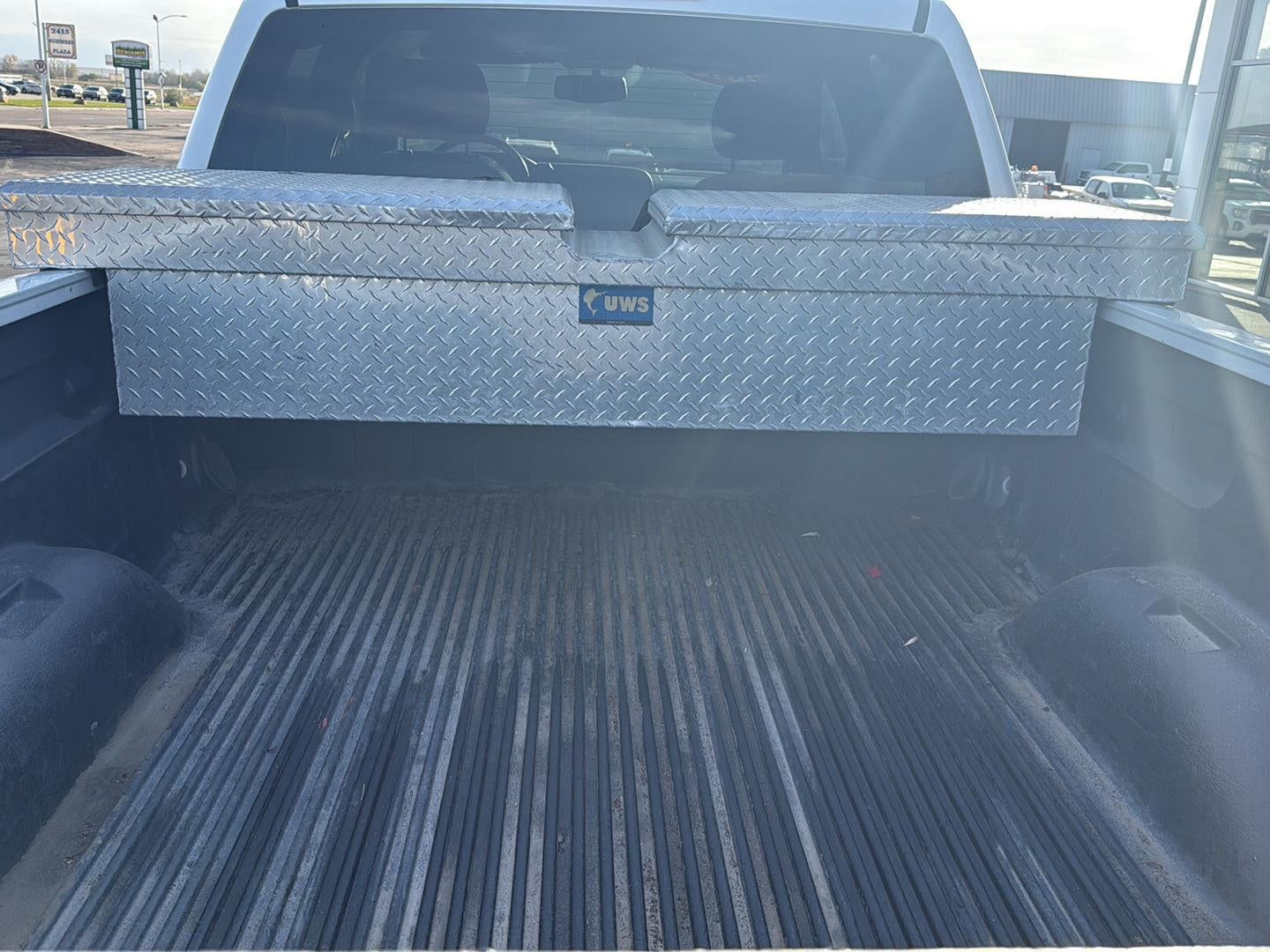

• Pickup box
• Fleetside
• Tire carrier
• outside spare
• winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered)
• Spare tire lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (VF7) rear bumper delete is ordered.)
• Bumper
• front chrome
• Bumper
• rear chrome
• step-style with pad (Not available with (ZW9) pickup box delete)
• Moldings
• bodyside
• body-colored (Not available with Regular Cab models. Moldings are deleted if any SEO paint is ordered.)

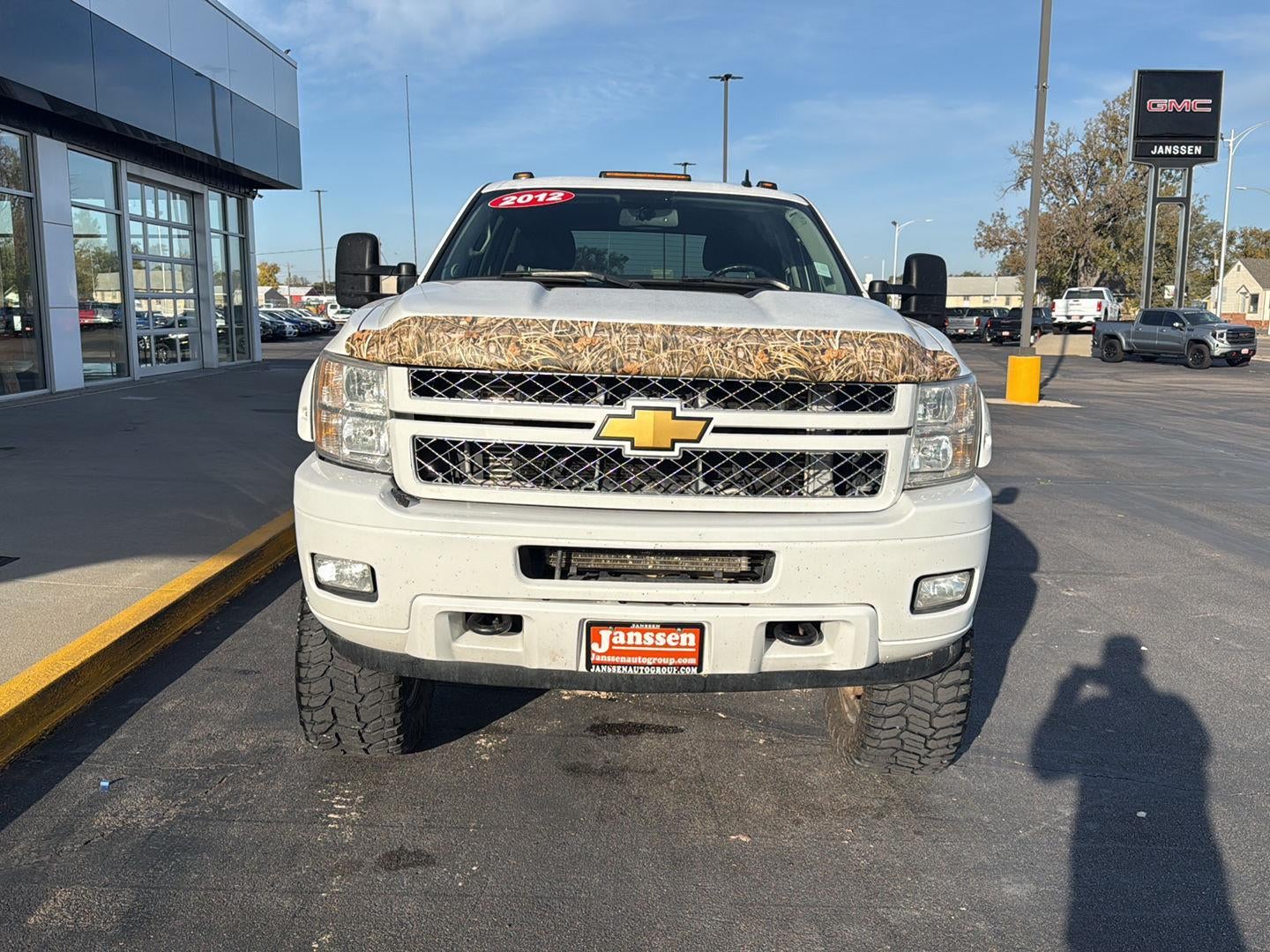

• Grille
• chrome surround

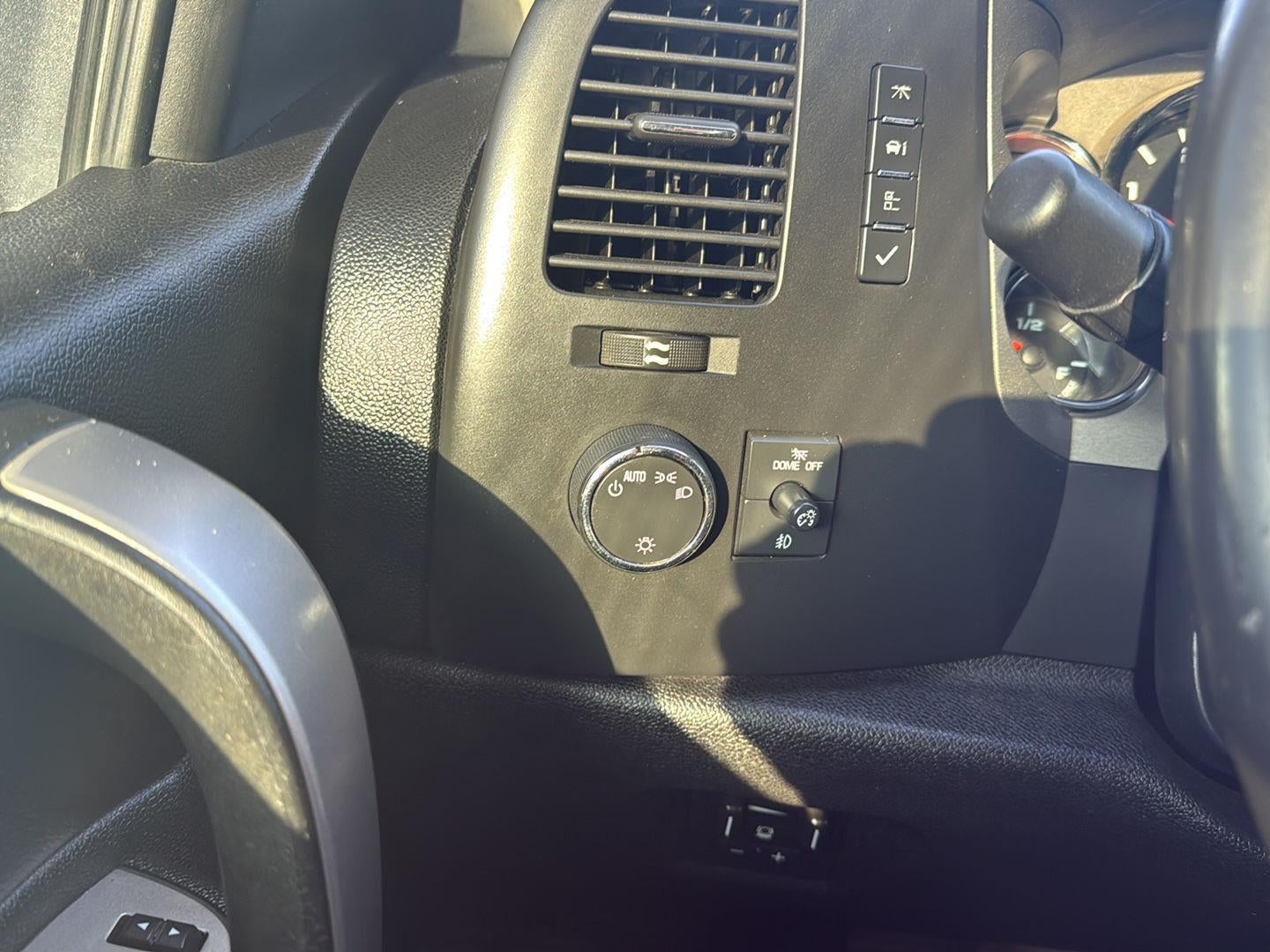

• Headlamps
• dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps
• dual cargo area lamps
• Mirrors
• outside heated power-adjustable vertical camper manual-folding and extension
• Black includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)
• Glass
• Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver-and front passenger-side glass) (With Regular Cab Models
• includes rear window. With Extended Cab Models
• includes rear and rear quarter windows. With Crew Cab Models or (C49) rear-window defogger
• includes light-tinted rear window.)
• Wipers
• front intermittent wet-arm with pulse washers
• Door handles
• Black
• Audio system feature
• speaker system (Includes 4 speakers on Regular Cab and 6 speakers on Extended and Crew Cab Models.)
• Seat adjuster
• manual lumbar control on the driver-side

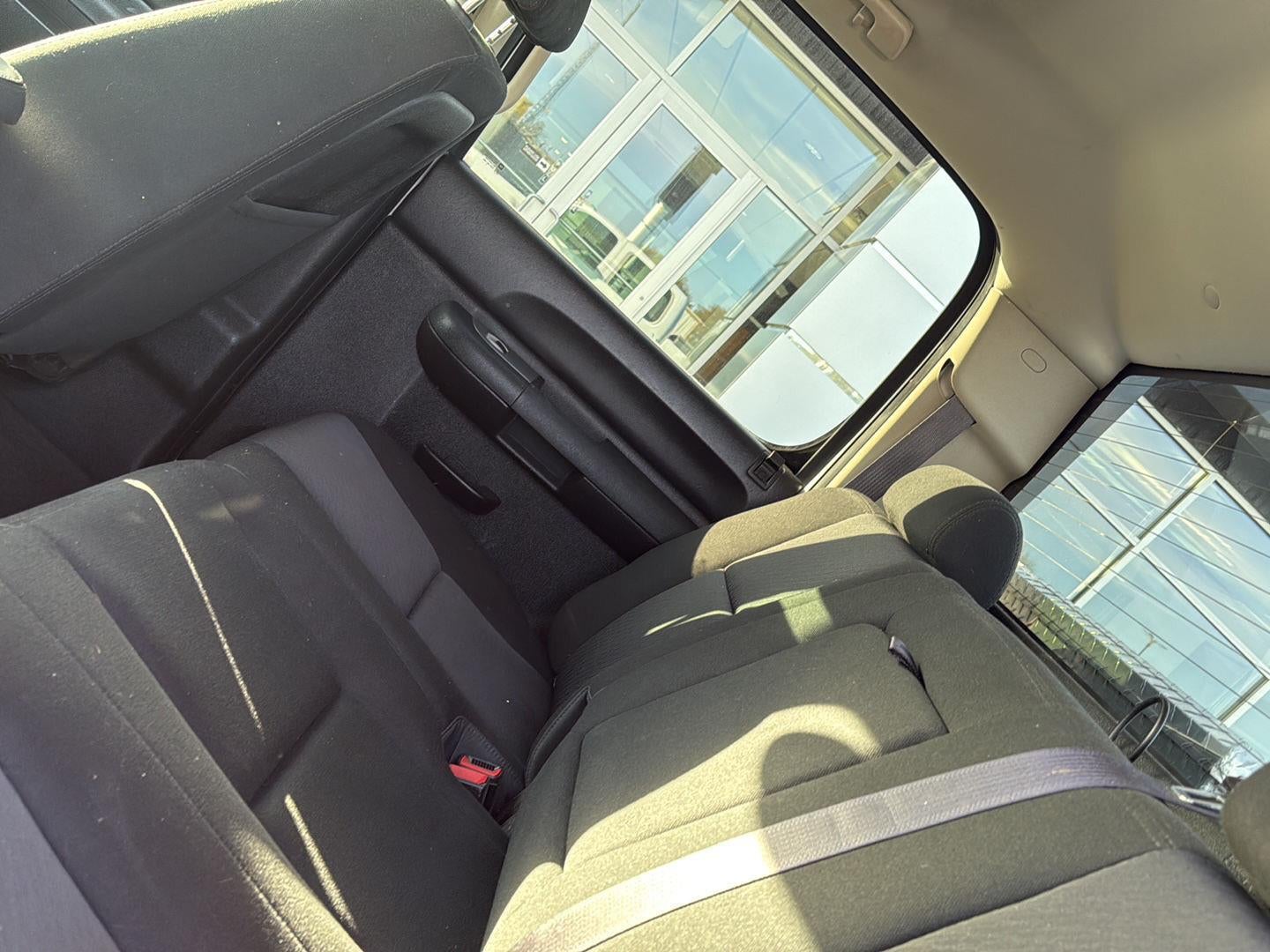

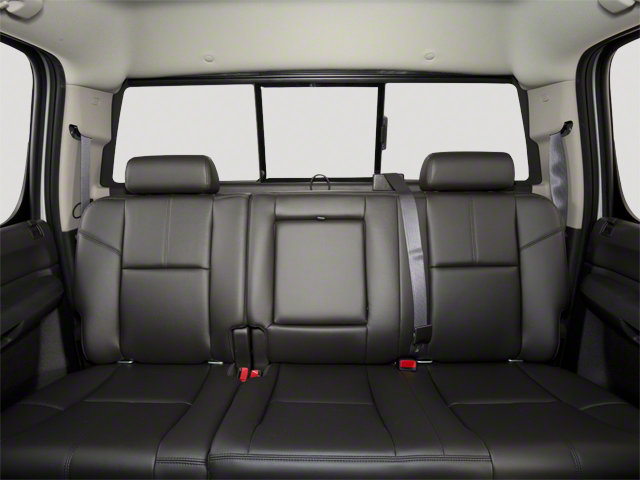

• Seat
• rear 60/40 folding bench (folds up)
• 3-passenger
• folding (includes child seat top tether anchor) (Requires Extended or Crew Cab Models.)

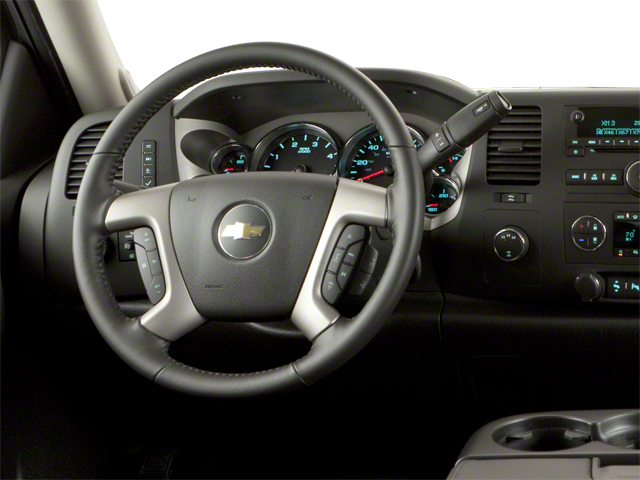

• Steering wheel
• leather-wrapped with theft-deterrent locking feature
• Steering column
• Tilt-Wheel
• adjustable with brake/transmission shift interlock

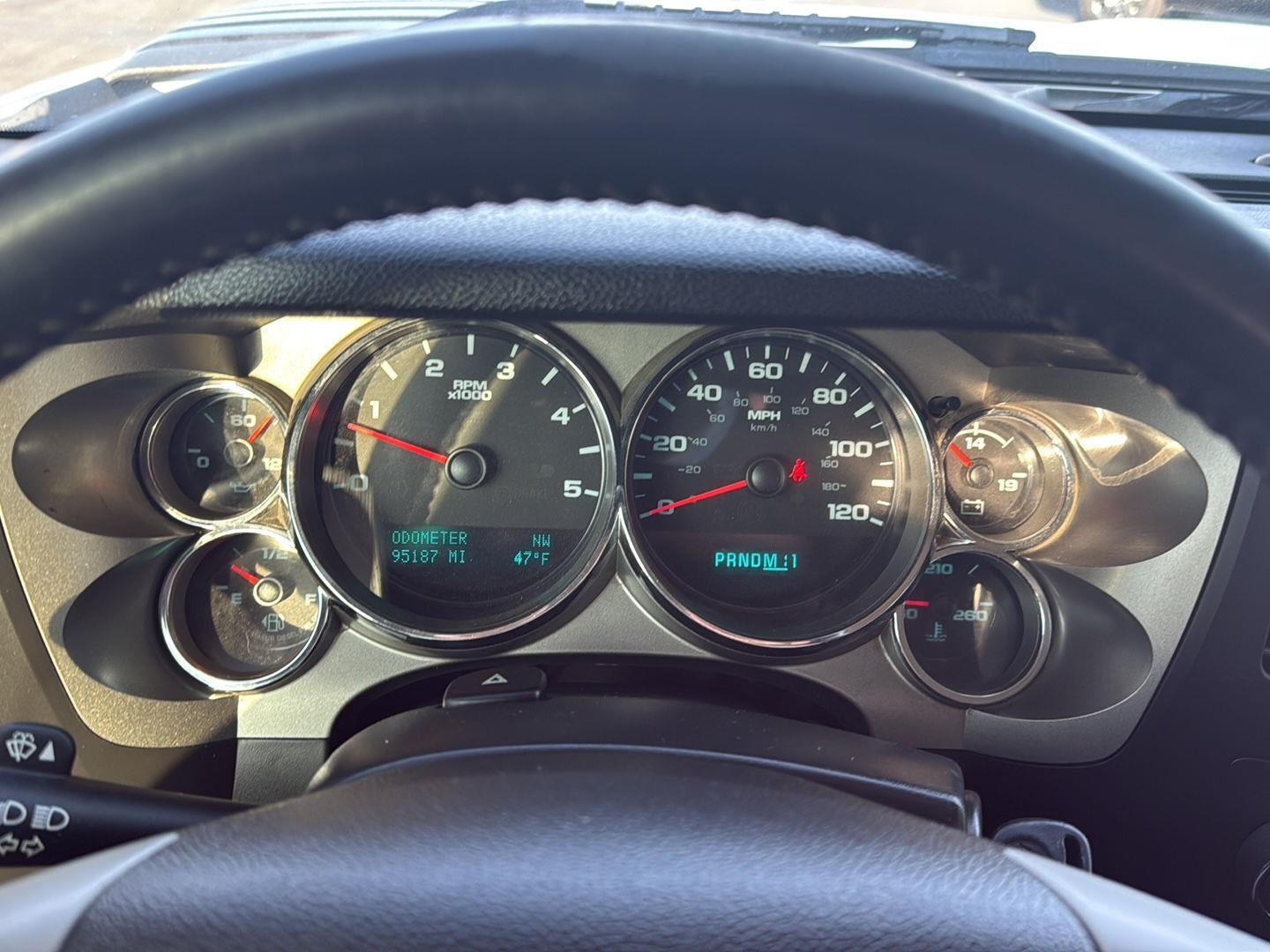

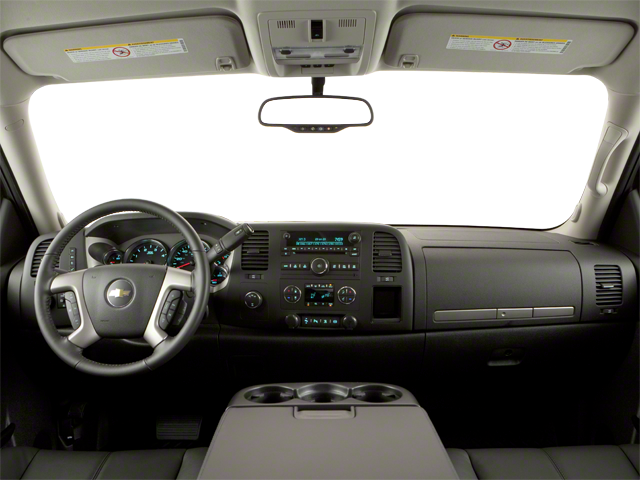

• Instrumentation
• analog with speedometer
• fuel level
• engine temperature
• tachometer
• voltmeter and oil pressure indicators
• Driver Information Center with odometer
• trip odometer and message center (monitors numerous systems depending on vehicle equipment level including low fuel
• turn signal "on"
• transmission temperature and oil change notification) (Driver Information Center controls are operated through the trip button unless (UK3) steering wheel mounted audio controls is ordered. On 1LT and 1LZ
• includes 8-point compass and outside temperature.)
• Warning tones headlamp on
• key-in-ignition
• driver and passenger buckle up reminder and turn signal on
• Windows
• power with driver Express-Down

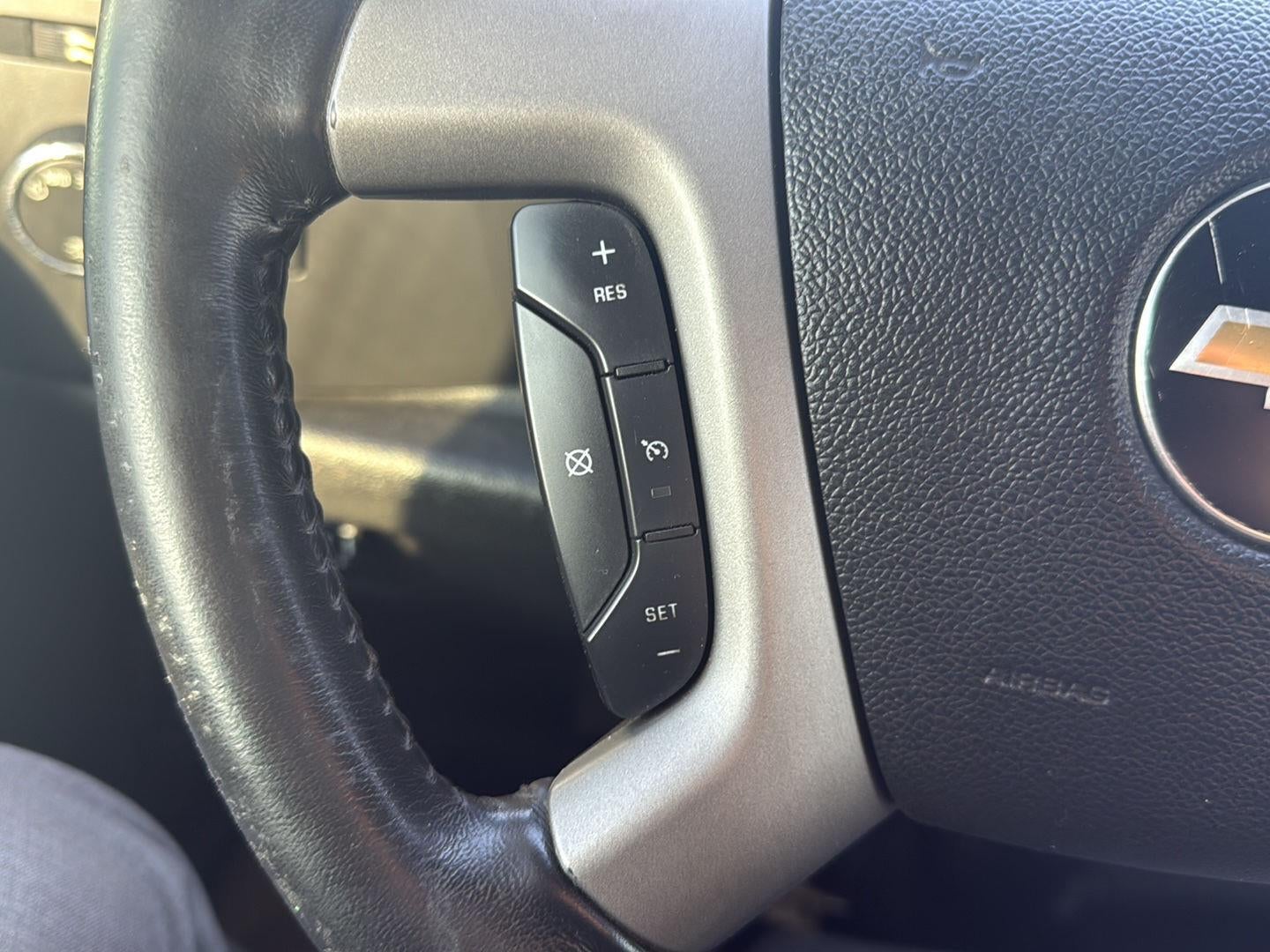

• Cruise control
• electronic with set and resume speed
• located on steering wheel

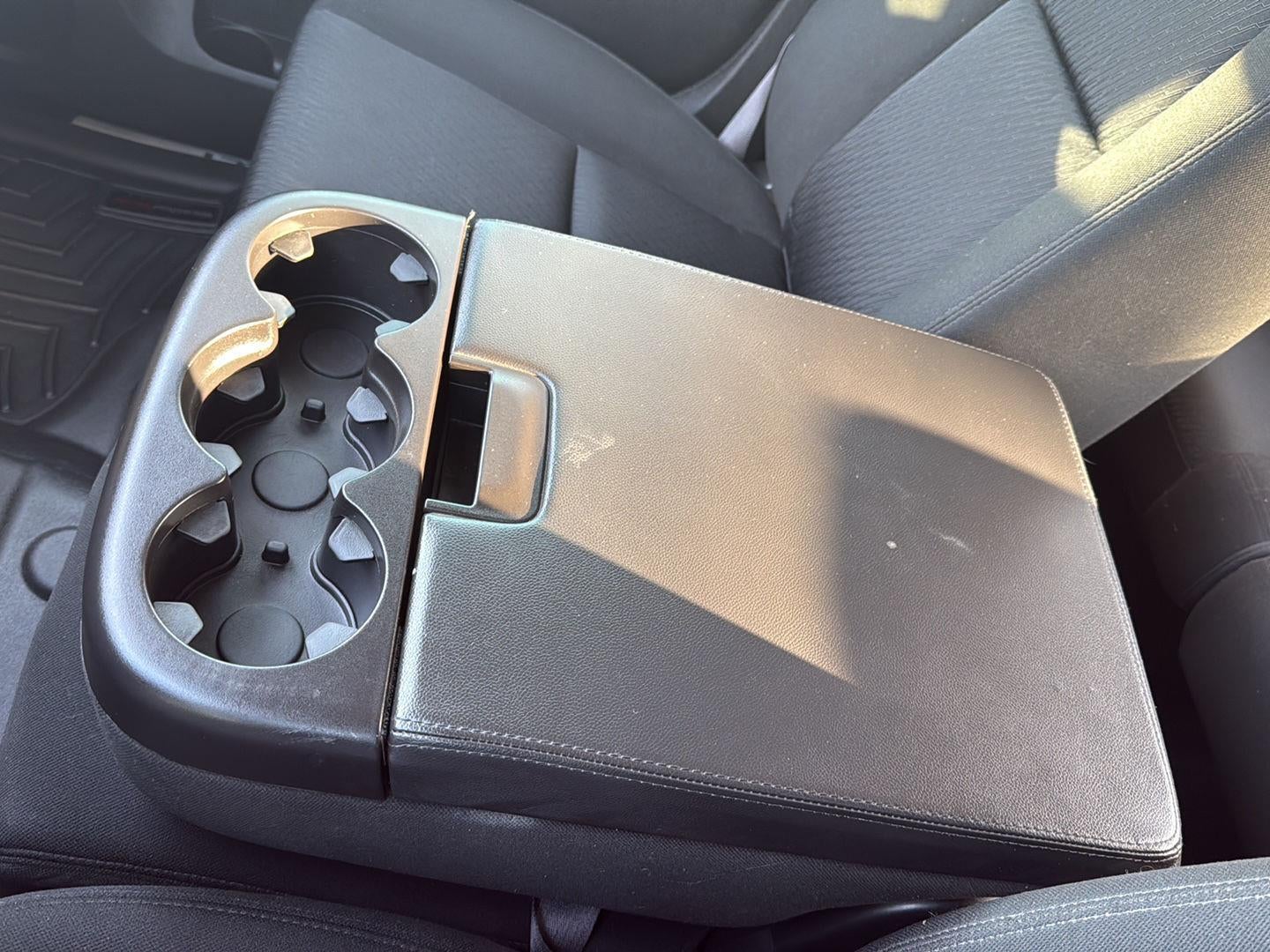

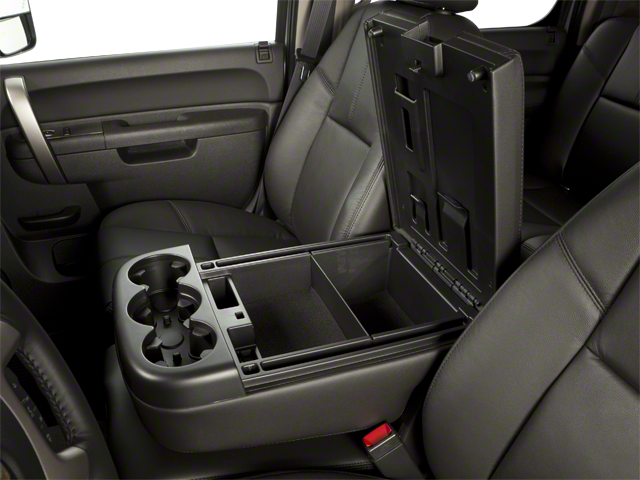

• Cup holders
• front (Also includes rear cupholders on Extended and Crew Cab models)
• Visors
• driver and front passenger
• sliding with clip and illuminated vanity mirror on driver and passenger-side
• Opal Gray-colored
• Assist handle
• front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Lighting
• interior with dome and reading lights
• illuminated entry feature and backlit instrument panel switches
• Coat hooks
• rear driver and passenger side
• StabiliTrak
• stability control system with Proactive Roll Avoidance and traction control
• includes electronic trailer sway control and hill start assist (Standard on single rear wheel GVWR only.)
• Daytime Running Lamps with automatic exterior lamp control
• Air bags
• frontal
• driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size
• even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant
• child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• Door locks
• rear child security (Crew Cab models only.)

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): 25.4
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): 3834
• Curb Weight - Rear (lbs): 2776
• Gross Vehicle Weight Rating Cap (lbs): 13000
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1950
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1380
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17000
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4250
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2300
• Maximum Trailering Capacity (lbs): 17000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5600
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.32
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QWF
• Rear Tire Order Code: QWF
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): 2860
• Rear Tire Capacity (lbs): 3525
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 17 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 54.8
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.7
• Length, Overall w/o rear bumper (in): 240.2
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 77.4
• Overhang, Front (in): 38.8
• Overhang, Rear w/o bumper (in): 47.7
• Front Bumper to Back of Cab (in): 150.9
• Cab to Axle (in): 41.6
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.0
• Ground Clearance, Rear (in): 8.4
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.5
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 60.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.3
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 60.3
• Second Head Room (in): 40.6
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 65.5
• Summary
• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Crew Cab 8' Fleetside
• Body Code: E63
